Author Topic: Yew in the works[Pictures added]  (Read 16990 times)

0 Members and 2 Guests are viewing this topic.

Offline Josh B

  • Member
  • Posts: 3,741
Re: Yew in the works
« Reply #15 on: March 03, 2014, 03:09:01 pm »
Wish I could help Pappy.  Unfortunately, I'm completely ignorant of r/d bows.  I'll be watching this with interest!  Josh
Logged

Offline Onebowonder

  • Member
  • Posts: 1,495
Re: Yew in the works
« Reply #16 on: March 03, 2014, 04:29:10 pm »
See if you can scare up DVSHunter's attention.  Dave's an R/D expert! :D :D :D :D :D

OneBow


Logged

Offline Roy

  • Member
  • Posts: 1,079
Re: Yew in the works
« Reply #17 on: March 03, 2014, 05:48:40 pm »

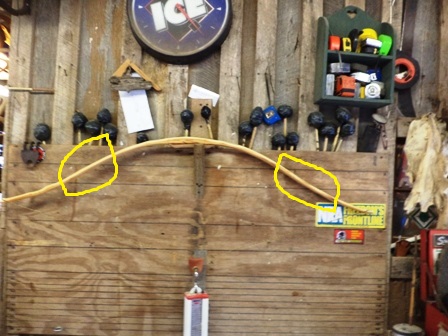

I make r/d bows all the time, Pappy. Stay away from the flares and out 6 inches all together. Get the areas I have circled bending more.  Roy
Logged

Offline Roy

  • Member
  • Posts: 1,079
Re: Yew in the works
« Reply #18 on: March 03, 2014, 05:51:45 pm »
My latest r/d bow, Pappy. This bow has already been tillered out, but before I started tillering it, it had almost as much reflex as your does. Notice at a brace, the outer 2/3rds of the limbs are sort of flat, then even at full draw they are still a little flat compared to what a straight limb bow would look like.. I guess we could call it an elliptical shape.
« Last Edit: March 03, 2014, 06:04:02 pm by Roy »
Logged

Offline Roy

  • Member
  • Posts: 1,079
Re: Yew in the works
« Reply #19 on: March 03, 2014, 06:09:39 pm »
Your bows reflex, and my bows reflex before I tillered it. My bow does not have the riser section on it yet in the picture.
« Last Edit: March 03, 2014, 06:16:16 pm by Roy »
Logged

Offline Roy

  • Member
  • Posts: 1,079
Re: Yew in the works
« Reply #20 on: March 03, 2014, 06:24:32 pm »
Here it is on the tree, it's only being pulled to 20 inches here. The outer 1/3rd of the limbs will come around even more as it's pulled down the tree to my draw of 28". But you can see how the reflex of the outer 3rd of the limbs begins to flatten out, that shows that the outer 3rd is working. Now I flip the tips on my bows before glue up, so the last say 9 inches of them will not come around, even at full draw. Please excuse the long gray haired hippie look.. :)
http://www.youtube.com/watch?v=LL9rt2FtQGA
« Last Edit: March 03, 2014, 06:40:55 pm by Roy »
Logged

Offline Pappy

  • Global Moderator
  • Member
  • Posts: 32,198
  • if you have to ask you wouldn't understand ,Tenn.
Re: Yew in the works
« Reply #21 on: March 04, 2014, 04:34:10 am »
Thanks Roy,I like the look of yours at full draw,I thought that is what I was looking for,just wasn't sure how to get there. Steve it is about 1 3/8 .I wanted more but like I said it was a pretty rough stave and that is all I could get,I was afraid it was going to be a bit un stable but seem to be doing fine in that respect.
I will scrap a little in the next few day and see how it goes.Thanks for the responce. Any more advice welcome. :)
 Pappy
Logged
Clarksville,Tennessee
TwinOaks Bowhunters
Life is Good

Offline Roy

  • Member
  • Posts: 1,079
Re: Yew in the works
« Reply #22 on: March 04, 2014, 07:28:35 am »
Pappy, you must have a couple beers when tillering a bow. Otherwise it won't come out right.. :)
Logged

Offline Will H

  • Member
  • Posts: 2,120
Re: Yew in the works
« Reply #23 on: March 04, 2014, 12:18:37 pm »
I think Roy nailed it pap. I can't wait to see how it turns out, I think it's gonna be a real nice shooter :)
Logged
Proud Member of Twin Oaks Bowhunters
           Clarksville, Tennessee

   "Middle Tennessee is the place to be"

Offline Carson (CMB)

  • Member
  • Posts: 2,319
Re: Yew in the works
« Reply #24 on: March 04, 2014, 02:06:29 pm »
That is looking pretty sweet.
Logged
"The bow is the old first lyre,
the mono chord, the initial rune of fine art
The humanities grew out from archery as a flower from a seed
No sooner did the soft, sweet note of the bow-string charm the ear of genius than music was born, and from music came poetry and painting and..." Maurice Thompso

mikekeswick

  • Guest
Re: Yew in the works
« Reply #25 on: March 04, 2014, 05:37:08 pm »
I agree with the above all I can add is slowly slowly slowly  ;)
Full draw will be interesting to see.
Logged

Offline Arrowind

  • Member
  • Posts: 1,428
Re: Yew in the works
« Reply #26 on: March 04, 2014, 10:08:56 pm »
Look'n gooooood!   can't wait to see how it turns out!
Logged
Talking trees. What do trees have to talk about, hmm... except the consistency of squirrel droppings?

Offline IdahoMatt

  • Member
  • Posts: 2,093
Re: Yew in the works
« Reply #27 on: March 04, 2014, 10:36:36 pm »
Looking very nice so far pappy.  Can't wait to see it completed
Logged

Offline Pappy

  • Global Moderator
  • Member
  • Posts: 32,198
  • if you have to ask you wouldn't understand ,Tenn.
Re: Yew in the works
« Reply #28 on: March 05, 2014, 06:21:16 am »
Got it out to 47@20 1/2 last evening,worked on the areas mentioned,I would work them some and then most of the limb,except for the last 6 or 7 inches at the tip and the area close to the fads. I think it is coming around,yes Mike full draw should be interesting,the early draw weight feel better than anything I have worked with,may be the design or the Yew,not sure.  ;)
 Pappy
Logged
Clarksville,Tennessee
TwinOaks Bowhunters
Life is Good

Offline adb

  • Member
  • Posts: 5,339
Re: Yew in the works
« Reply #29 on: March 05, 2014, 12:31:30 pm »
Pics??
Logged
